Bayesian Modeling of Event-Related Potentials 🧠

Invited talk at Medical College of Wisconsin Department of Biostatistics

Dr. Cheng-Han Yu
Department of Mathematical and Statistical Sciences
Marquette University

11/14/23

Why Bayesian and Event-Related Potentials (ERP)?

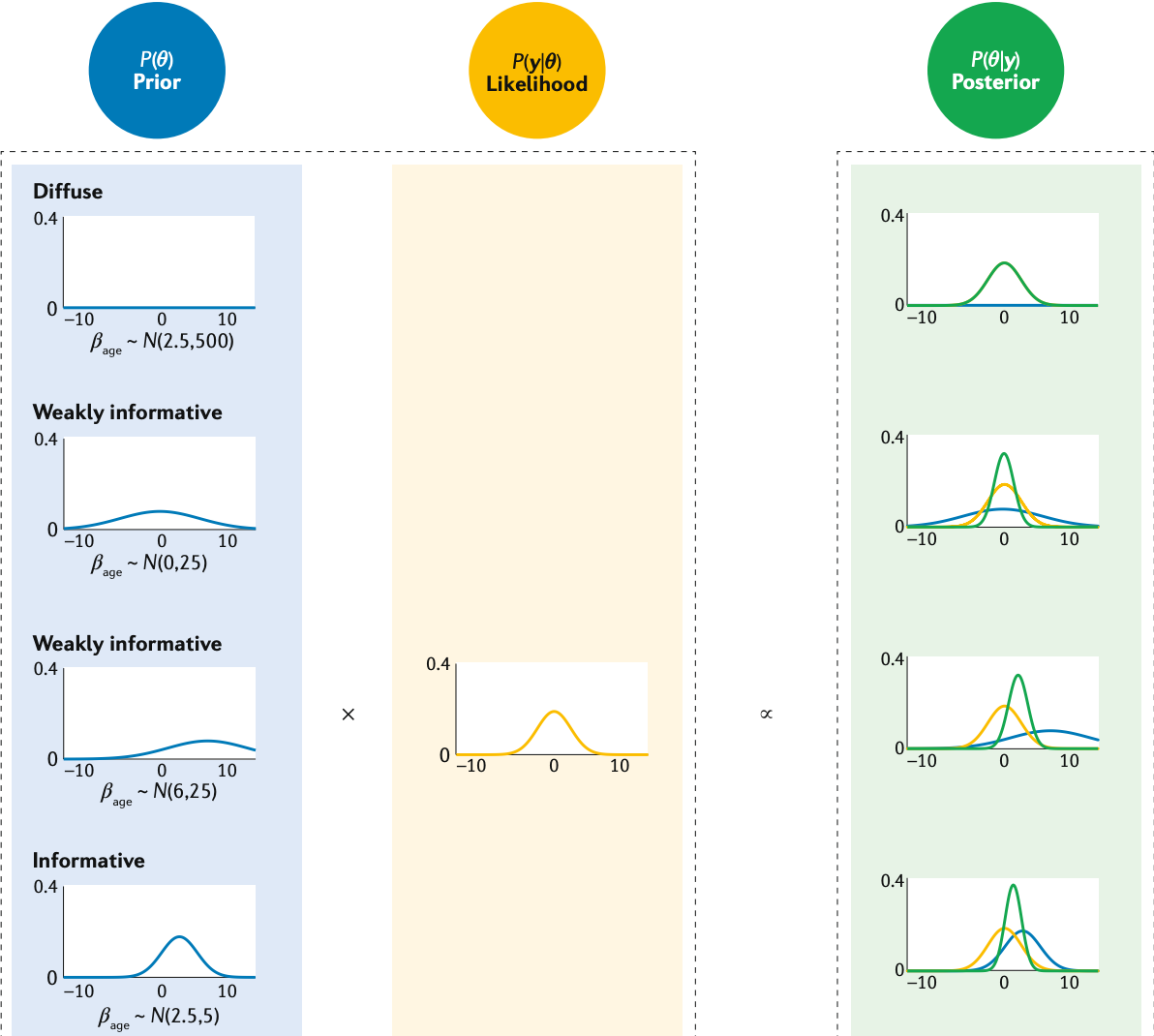

• Why Bayesian?
  • Uncertainty quantification
  • Unified hierarchical framework
  • Prior information

Source: Schoot et al. (2021)

• I don’t know how to do research using frequentist approaches. XD
• Quantify the uncertainty about the parameters easily and naturally once we obtain the posterior distributions.
• Also, it’s quite straightforward to build a hierarchical model using a Bayesian approach. And so for this project, we are doing the inference at the individual subject level and the population group level for different groups in an unified hierarchical framework.
• And as you all may know, Bayesian models can incorporate useful prior information into the model.

Why Bayesian and Event-Related Potentials (ERP)?

• Why Bayesian?
  • Uncertainty quantification
  • Unified hierarchical framework
  • Prior information
• Why ERP?
  • noninvasive
  • high temporal resolution
  • less costly
  • lack of sophisticated statistical methods

Source: https://www.eegget-it.nl/erp.html

• The second question is Why ERP?
• Well, ERP signals in fact come from EEG, which is an noninvasive neuroimaging modality with pretty high time resolution.
• It is relatively less costly comparing to other neuroimaging modalities, such as fMRI.
• More importantly, while there are lots of statistical research on EEG signals, not many sophistocated statistical methods out there for analyzing ERP data.

• Develop Bayesian hierarchical models for inference about latency and amplitude of ERP components as well as the underlying ERP waveform.

• So our goal is to develop Bayesian hierarchical models for inference about latency, amplitude as well as the underlying ERP waveform.
• We in particular focus on the latency of some ERP components because it’s related to cognitive processes, but there are not many good approaches that help us identify or quantify it.
• So let’s talk about ERP signals in more detail.

Electroencephalography (EEG)

Source: https://en.wikipedia.org/wiki/Electroencephalography

• Let’s first talk about EEG signals.
• Basically when a EEG experiment is conducted, a person’s brain activity is recorded from the electrodes placed on the person’s head.
• When you look at the raw EEG, it’s a pretty complicated signal. It’s basically the sum of everything the brain is doing.
• It can indicate if someone is awake or asleep, but in its raw form, the EEG cannot reveal the specific neural processes that underlie perception, cognition or emotion.

The raw EEG can indicate general state, e.g., awake or asleep, but it can’t tell us much about specific neural processes that underlie perception, cognition or emotion.

EEG to Event-Related Potentials (ERP)

Source: ERP Boot Camp (Luck and Kappenman, 2020)

• However, if we apply a simple set of signal processing operations to the raw EEG, we can pull out portions of the neural activity that are related to specific sensory, cognitive, affective and motor processes.
• So to do this, we basically record the EEG while a person is performing some task in response to some external stimuli, for example look at an image, picture, listen to some words, and a typical experiment would involve many stimuli and many responses.

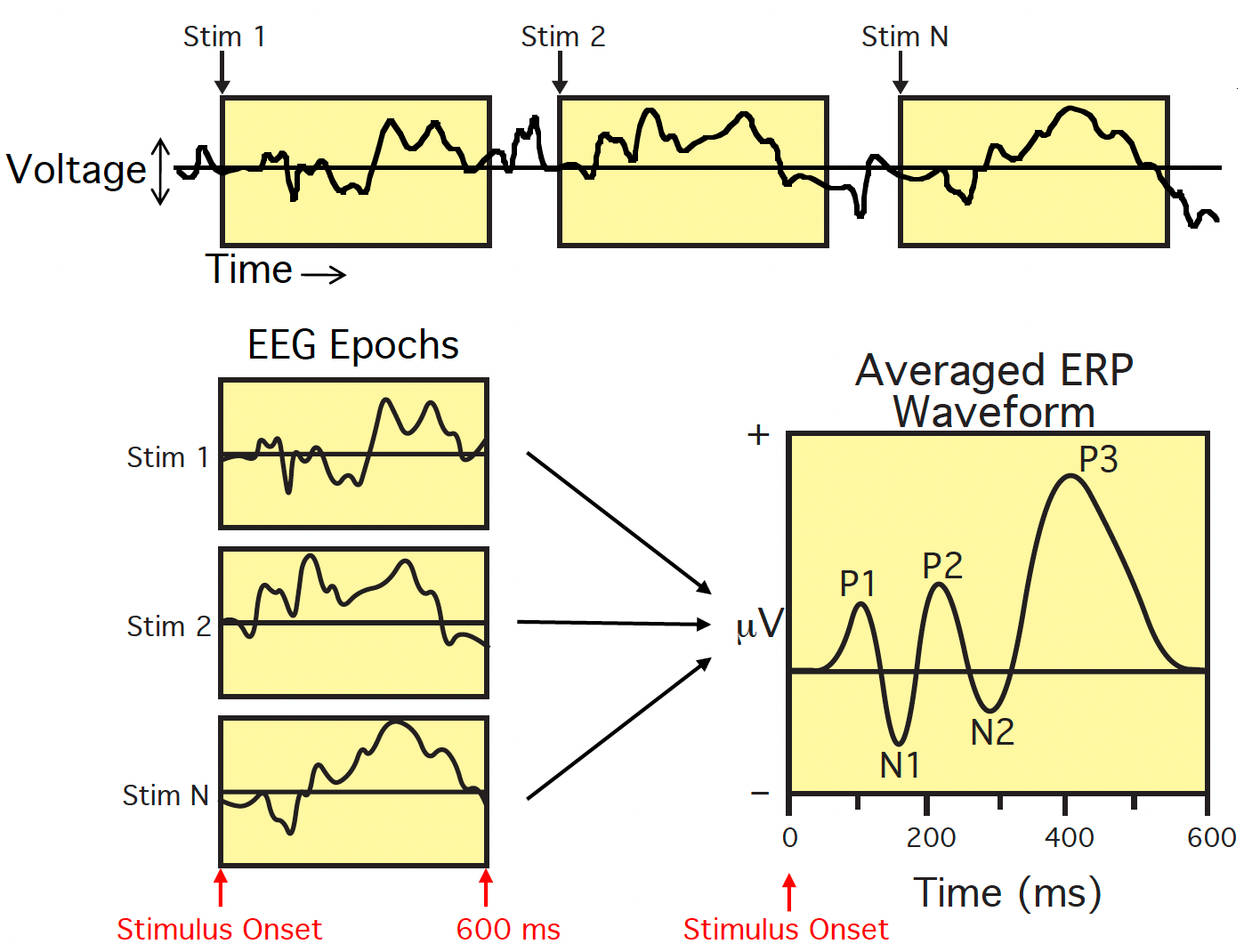

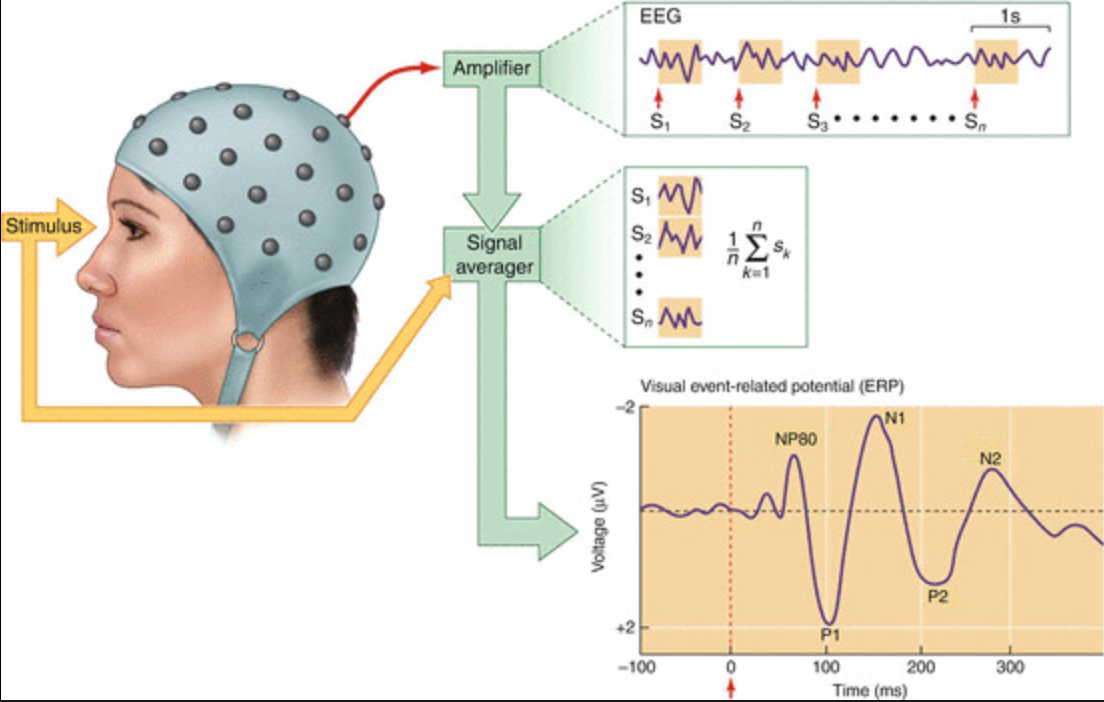

Event-Related Potentials (ERP)

Source: Luck (2012)

• To extract the so-called event related potentials, we first grab the period of EEG following each stimulus
• Then we take all the EEG epochs, and line them up in time.
• Finally we simply average across the epoch from some event or stimuli responses to get the ERP which is an electrical potential or voltage generated by the brain that is related to some event.

What ERP Can Do

Source: ERP Boot Camp (Luck and Kappenman, 2020)

• So what can we do with ERPs?
• Read words…

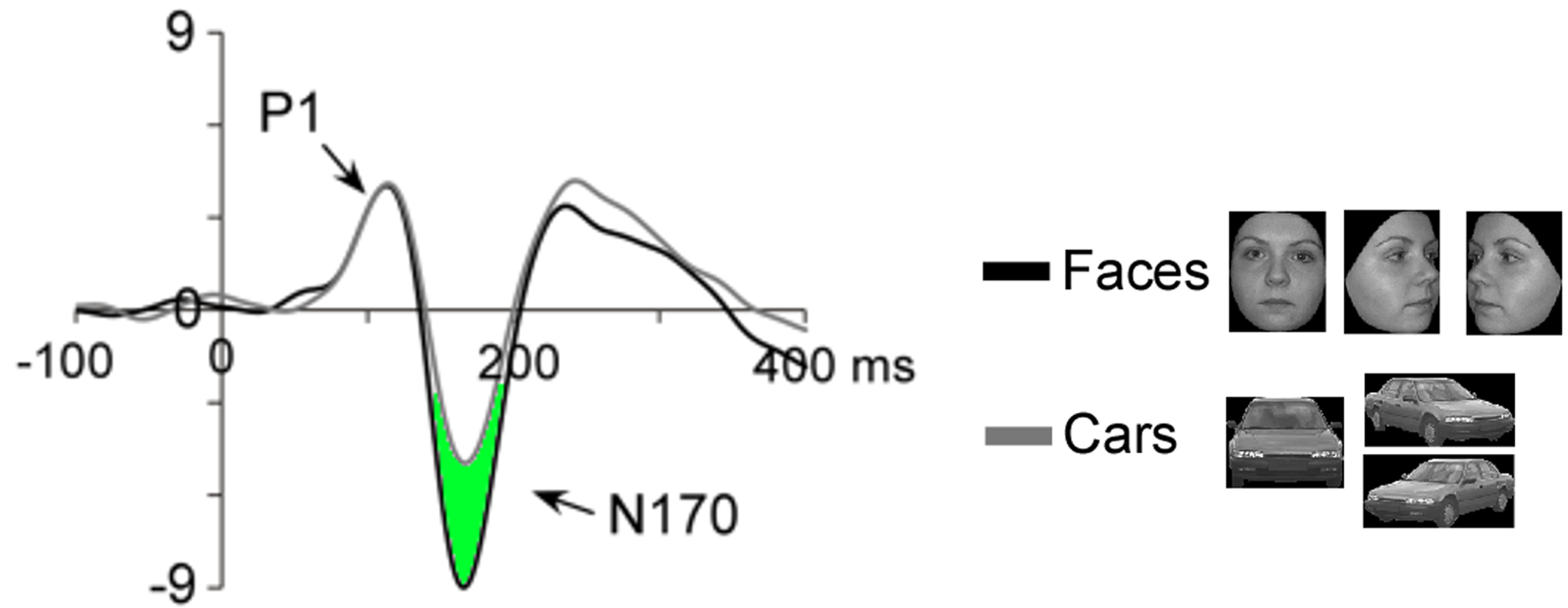

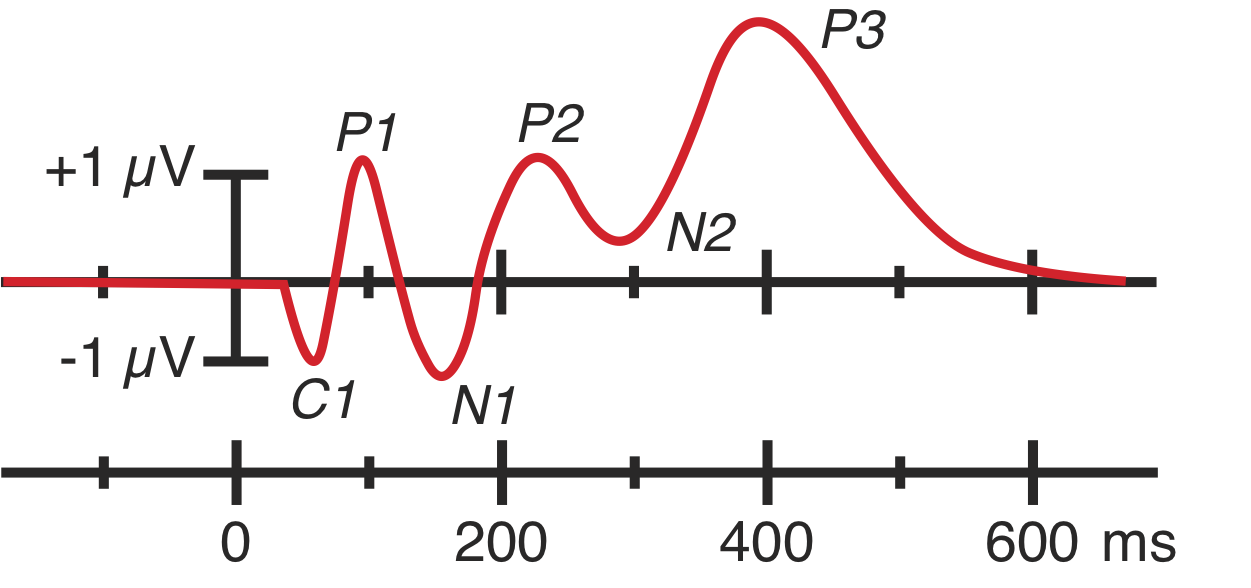

Estimate ERP Components

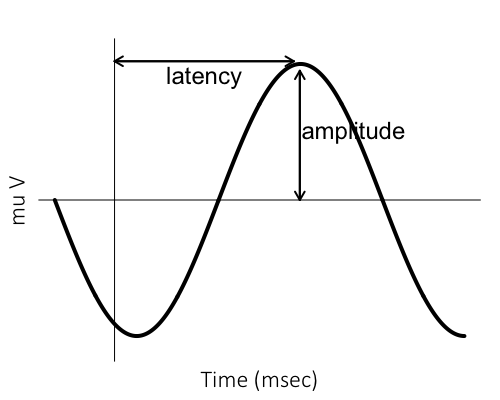

• Interested in estimating the amplitude and latency of some ERP component.

Source: Rossion & Jacques (2012)

• In a typical ERP study, we focus on estimating the amplitude and latency of some ERP components or the important peaks or dips that are related to human sensory, cognitive or motor processes where amplitude is the magnitude of the component and the latency is the time when the ERP component occurs.

Inference Methods

• Current methods

  • grand ERP by averaging across subjects: lost subject-level information

  • no uncertainty quantification

  • filtering for removing drifts or noises: no rule of thumb for which frequency/bandwidth should be used.

  • component search window specification

  • separate ANOVA for control-experimental comparison

Source: Fisher et al. (2010)

• Current methods have several issues or drawbacks.
• In order to obtain precise point estimates of latency and amplitude, or the entire ERP waveform, people tend to get the grand ERP waveform by averaging across subjects.
• By doing so, subject-level information is lost.
• NO UQ
• To get a smooth ERP curve, some kinds of filters are necessary to remove signal drifts and noises. But no rule of thumb for which frequency/bandwidth should be used.
• To analyze ERP components, a time search window needs to be specified to frame the range of the components and an inappropriate time window may result in false analysis.
• But so far there are no systematic or consistent ways of selecting such windows, and the window is chosen based on previous scientific findings.

Solve the issues by

• Bayesian hierarchical model with a derivative Gaussian process prior: Yu et al., Biometrics (2022), Li et al., JASA T&M (2023), Yu et al., Data Science in Science (2024 expected)

Gaussian Process (GP)

A Gaussian process (GP) is a process f(\cdot): \mathbb{R}^D \rightarrow \mathbb{R} where all finite-dimensional distributions are Gaussian, for any n and x_1\dots, x_n \in \mathbb{R}^D:

f(x_1), \dots, f(x_n) \sim N_n\left(\boldsymbol \mu, \boldsymbol \Sigma\right)

• Write f(\cdot) \sim GP to denote that the function f is a GP.

• The underlying true ERP waveform is assumed a GP.

• Before getting into our model, let me briefly talk about GP.

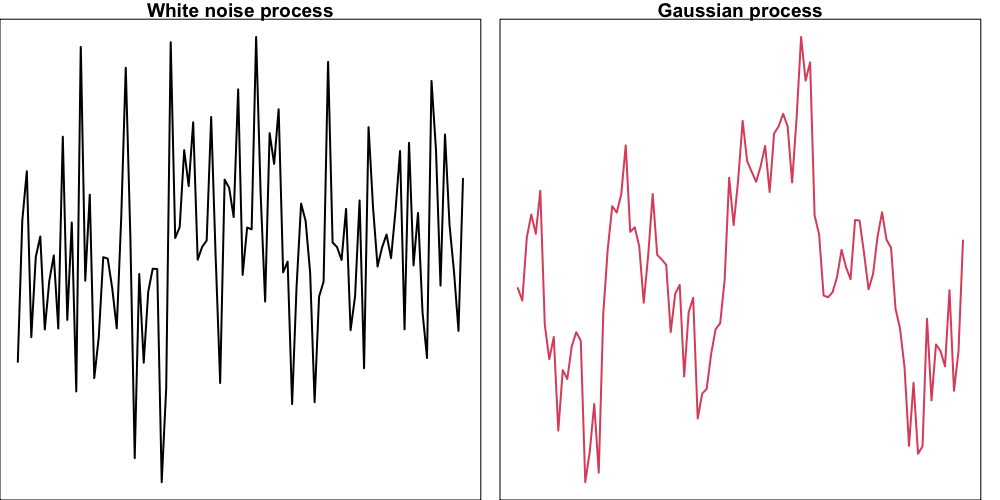

• Here shows a one-dimensional white noises and a realization or sample path of a GP.

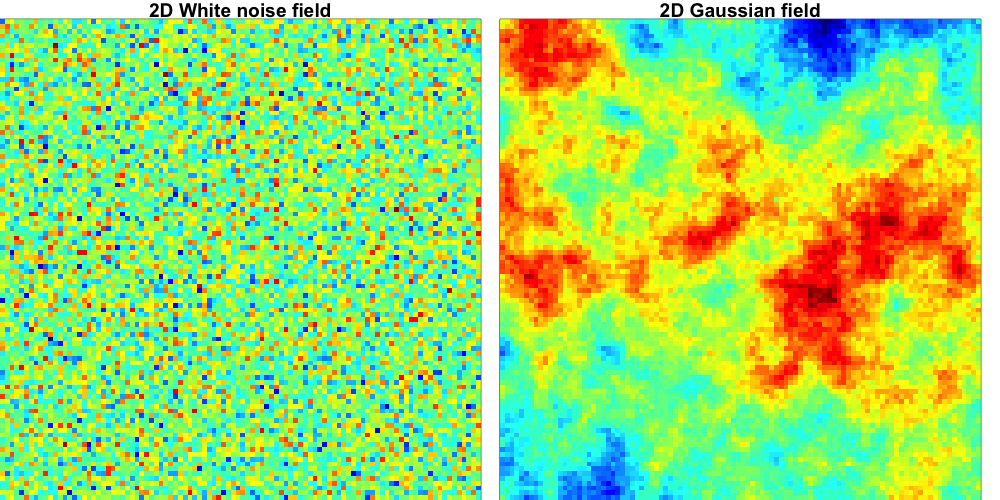

• Here shows a two-dimensional white noises and a realization or sample path of a GP.

Mean and Covariance Function

• To fully specify a GP, we need the mean and covariance function, f(\cdot) \sim GP\left(m(\cdot), k(\cdot, \cdot)\right) where

\text{E}(f(x)) = m(x) \text{Cov}(f(x), f(x')) = k(x, x')

• Popular choices of m(\cdot) are m(x) = 0 or \text{const} for all x, or m(x) = \beta'x

• Care more about the covariance function or kernel as it governs the how the process looks like by defining the similarity between data points.

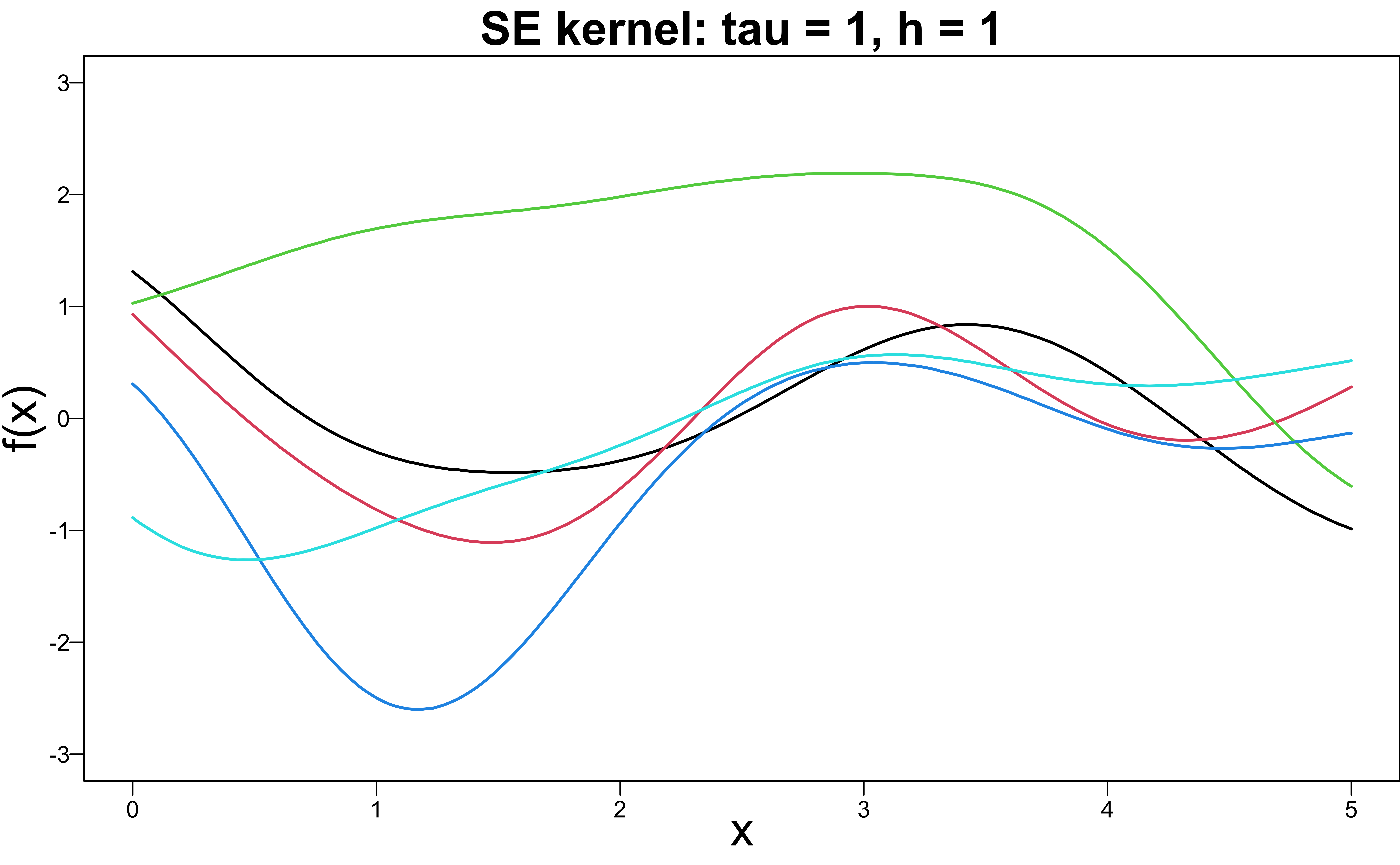

Squared Exponential (SE) Kernel

k(x, x' \mid \tau, h) = \tau^2 \exp\left(-\frac{(x - x')^2}{2h^2} \right)

k(x, x') = \exp\left(-\frac{1}{2}(x - x')^2 \right)

• The parameter h is the characteristic length-scale that controls the number of level-zero upcrossings.

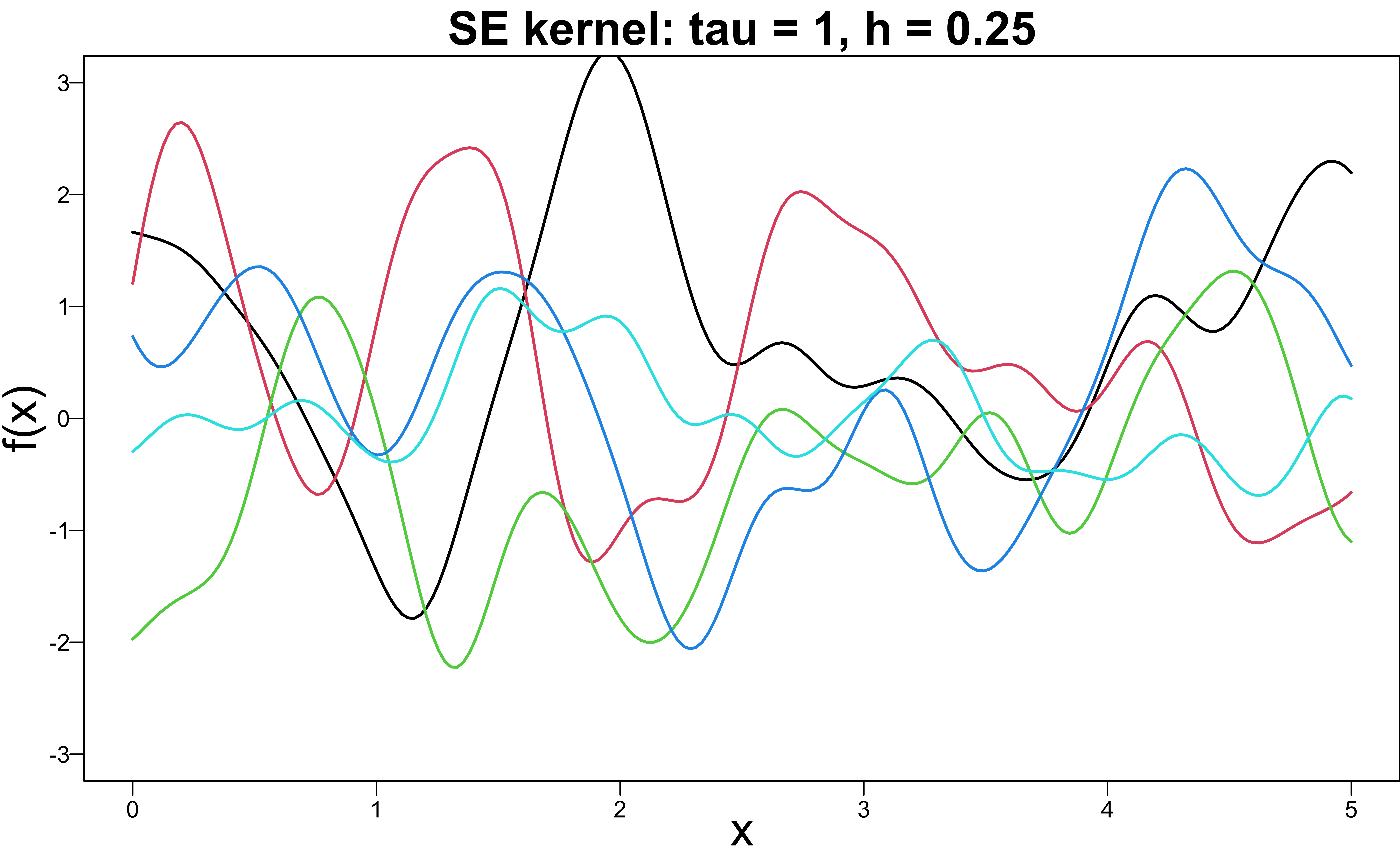

Squared Exponential (SE) Kernel

k(x, x') = \exp\left(-\frac{1}{2}\frac{(x - x')^2}{ {\color{red}{0.25}}^2} \right)

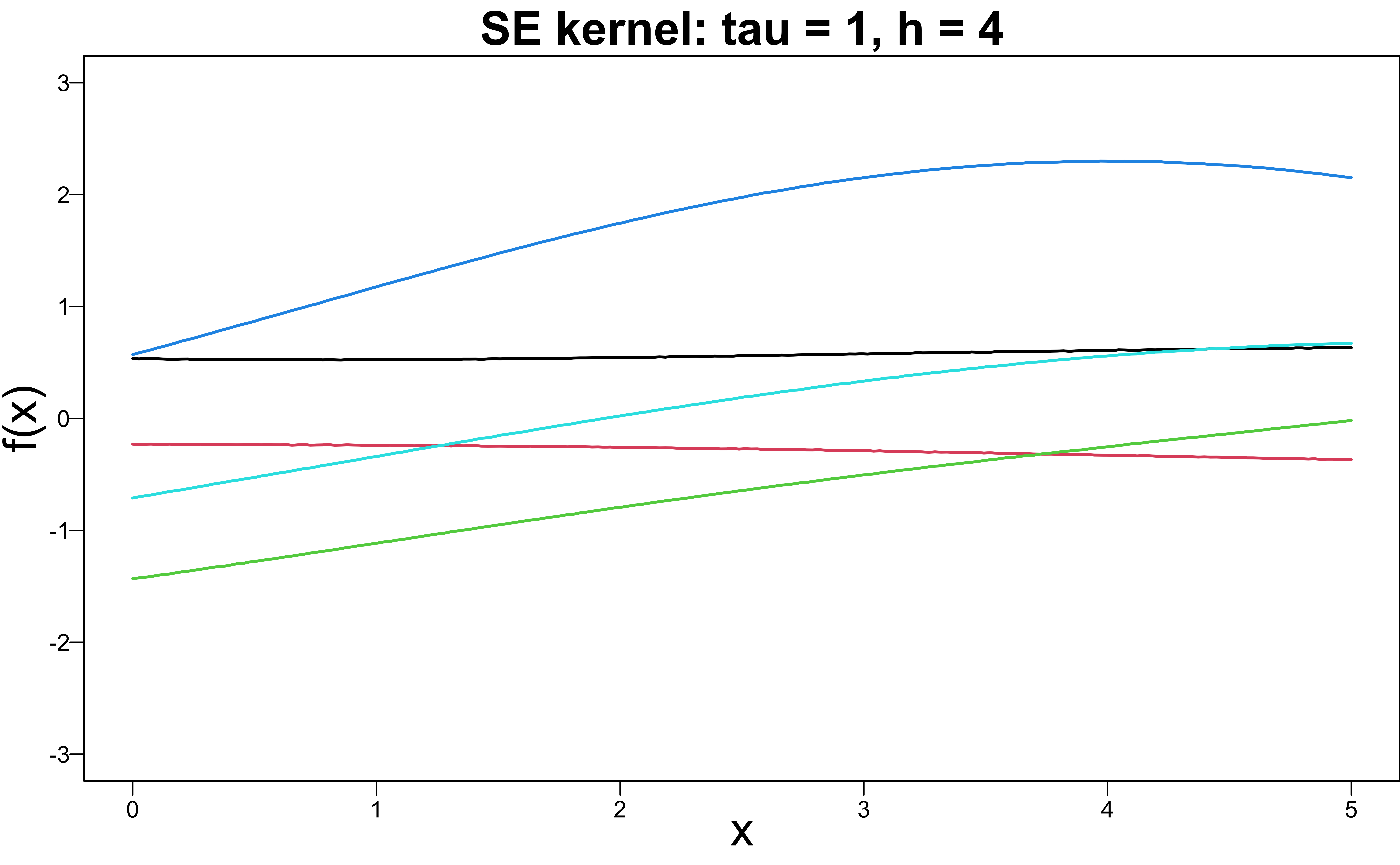

Squared Exponential (SE) Kernel

k(x, x') = \exp\left(-\frac{1}{2}\frac{(x - x')^2}{ {\color{red}{4}}^2} \right)

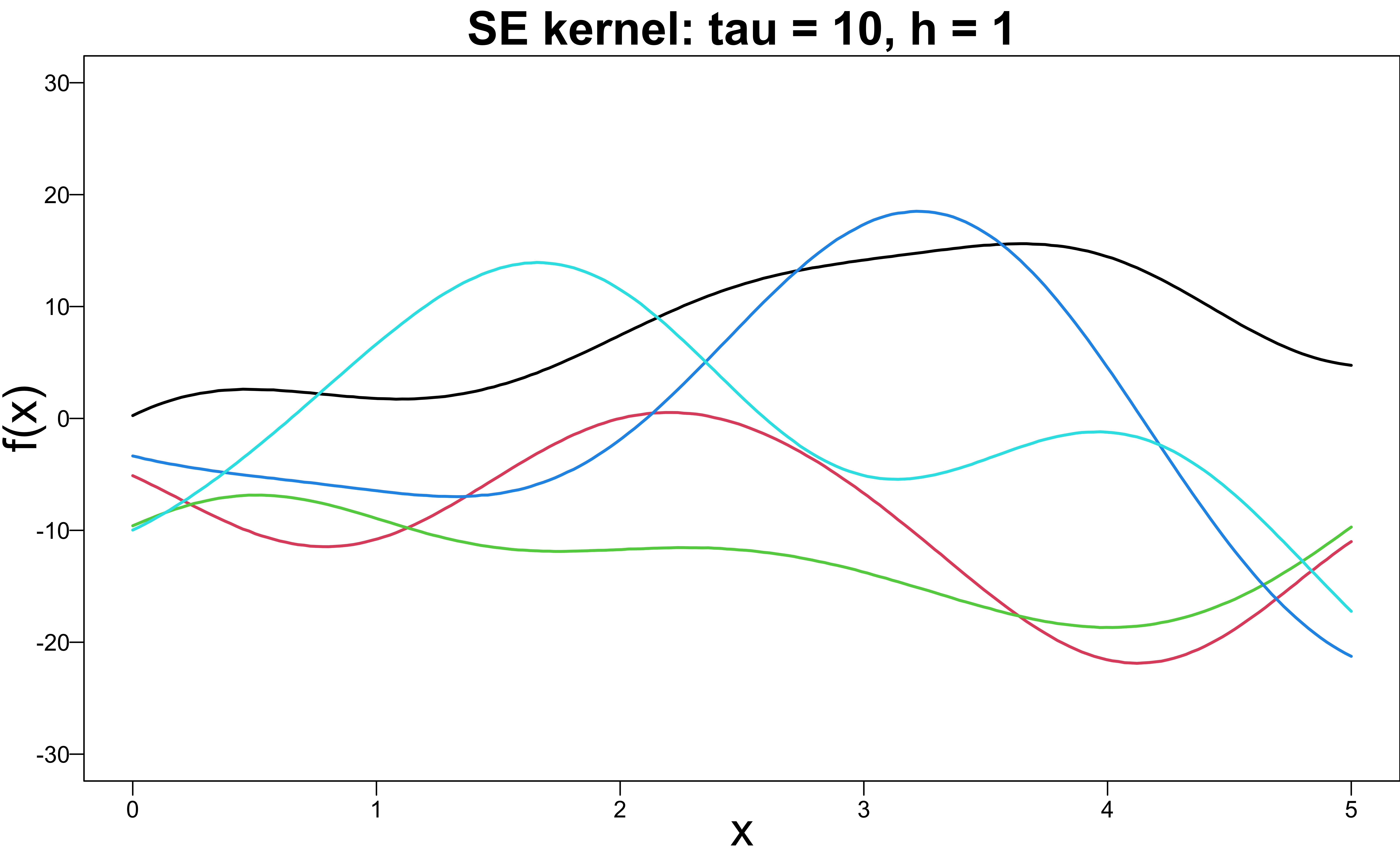

Squared Exponential (SE) Kernel

k(x, x') = {\color{red}{10^2}}\exp\left(-\frac{1}{2}(x - x')^2 \right)

• The parameter \tau^2 is the variance of f(x) that controls the vertical variation of the process.

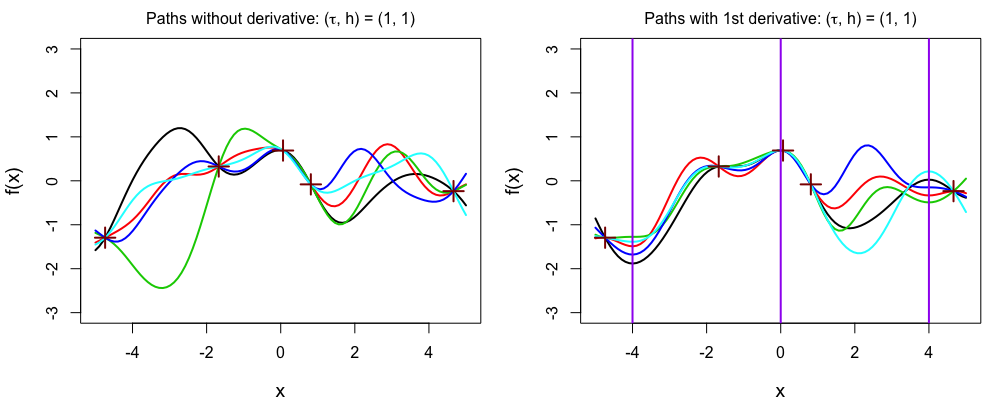

Derivative Gaussian Process (DGP)

• Force f' = 0 at x = -4, 0, and 4, and all paths follow the constraint.
• The stationary points can be a maximum, minimum or inflection point.
• Add 3 constraints, but a path will have at least 3 stationary points.

• DGP is basically a GP with derivative constraints or information.
• For example here on the left, we have GP sample paths of SE kernel without derivative constraints.
• But we could add derivative information to the GP.
• Like the one on the right that (…)

Shaped-Constrained Regression

\begin{aligned} y_i &= f(x_i) + \epsilon _i, ~~ \epsilon _i \sim N(0, \sigma^2), ~~ i = 1, \dots, n, \\ f'(t_m) &= 0, ~~m = 1, \dots, M,\\ f(\cdot) &\sim GP \end{aligned}

• In ERP applications,
  • \{y_i\}_{i=1}^n are the ERP time series observations.
  • f(\cdot) is the true underlying smooth ERP waveform.
  • M peaks at t_1, \dots, t_M of a ERP waveform f are such that f'(t_m) = 0.

Note that t_1, …, t_M are parameters we are interested and want to learn.

Derivative Gaussian Process Prior

• DGP prior of f, DGP\left(\mu(\cdot), k(\cdot, \cdot), \mathbf{t}\right), \mathbf{t}= (t_1, \dots, t_M)

• Mean function is x_i \mapsto \mu(x_i) - k_{01}(x_i, \bm{t}) k_{11}^{-1}(\bm{t}, \bm{t}) \mu'(\bm{t}) where \mu'() is the mean function of f'.

[k_{01}(\bm{x}, \bm{t})]_{ij} := \frac{\partial }{\partial t_j}k(x_i, t_j), ~~[k_{11}(\bm{t}, \bm{t})]_{ij} := \frac{\partial ^2 }{\partial t_i \partial t_j}k(t_i, t_j)

• Covariance kernel is (x_i, x_j) \mapsto k(x_i, x_j) - k_{01}(x_i, \bm{t}) k_{11}^{-1}(\bm{t}, \bm{t}) k_{10}(\bm{t}, x_j)

k_{10}(\bm{x}, \bm{t}) = k_{01}^T(\bm{x}, \bm{t})

Prior on Stationary Points

• t_1, \dots, t_M are parameters to be estimated.

• In ERP studies, M is usually known.

• Use an univariate prior t \sim \pi(t) that corresponds to assuming that f has at least one stationary point, and utilize the posterior of t to infer all stationary points.

An univariate prior of t leads to

• Efficient computation:

  • The covariance matrix only adds one more dimension to from n by n to (n+1) by (n+1).
  • Simple one-dimensional sampling on t.

• Avoids possible misspecification of M that distorts the fitted result.

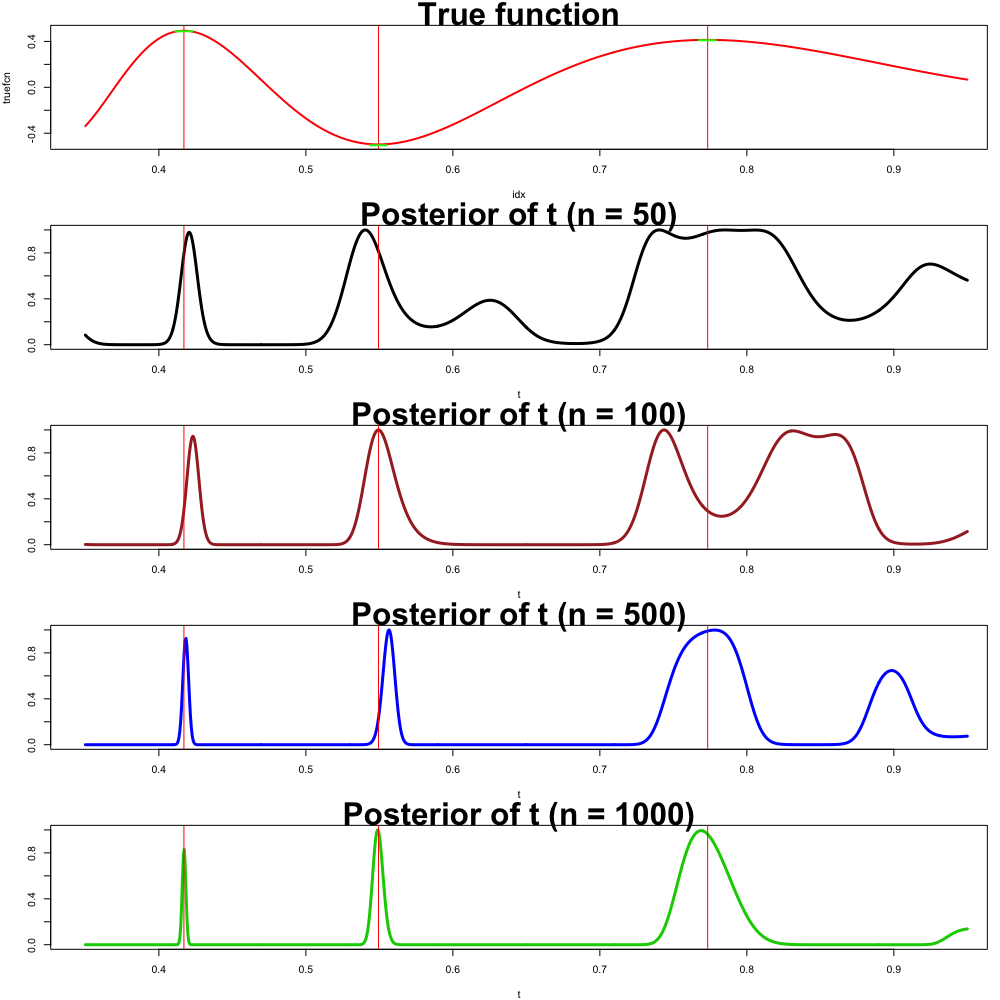

• Theorem: The posterior of t converges to a mixture of Gaussians as n \rightarrow \infty, and the estimated number of mixture components converges to the number of stationary points.

Mixture of Gaussians

Posterior Inference via Monte Carlo EM

\begin{aligned} y_i &= f(x_i) + \epsilon_i, ~~ \epsilon_i \sim N(0, \sigma^2), ~~i = 1, \dots, n, \\ f &\sim GP(0, k(\cdot, \cdot; \boldsymbol \theta)) , ~~ f'(t) = 0,\\ t &\sim \pi(t), ~~ \sigma^2 \sim \pi(\sigma^2), ~~ \boldsymbol \theta\sim \pi(\boldsymbol \theta) \end{aligned}

For iteration i = 1, 2, \dots until convergence:

• Monte Carlo E-step: Metropolis-Hastings on t and Gibbs sampling on \sigma^2.

• M-step: Given samples of t and \sigma^2, update \boldsymbol \theta to \hat{\boldsymbol \theta}^{(i+1)} by setting \begin{aligned} \hat{\boldsymbol \theta}^{(i+1)} &= \arg \max_{\boldsymbol \theta} \frac{1}{J} \sum_{j=1}^J \log p(\bm{y} \mid t_j^{(i)}, (\sigma_j^2)^{(i)}, \boldsymbol \theta^{(i)}) \end{aligned}

Simulation: Uncertainty Quantification of t and f

• f(x) = 0.3 + 0.4x+0.5\sin(3.2x) + 1.1 /(1 + x^2), x\in [0, 2]
• Two stationary points t_1 = 0.44 and t_2 = 1.46.
• \pi(t) = \text{Unif}(0, 2).

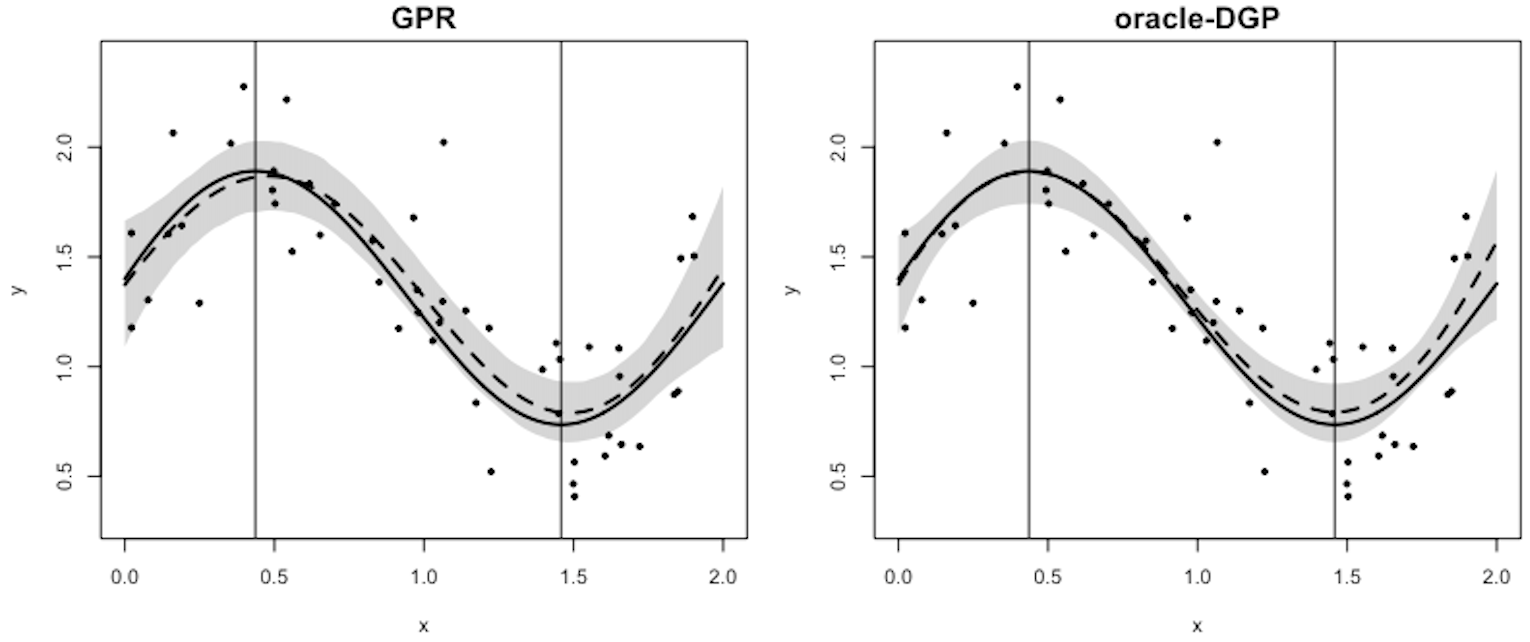

Oracle DGP

• Better curve fitting if true stationary points were known.

One thing I’d like to mention is that if the true s.p were known to us, which we called oracle DGP, its curve fitting would be better than the basic GPR. The reason is that now we have more information about how the regression function looks like, and the information is 100% correct. So in general, the uncertainty band of oracle DGP will be narrower than GPR or DGP when s.p is uncertain.

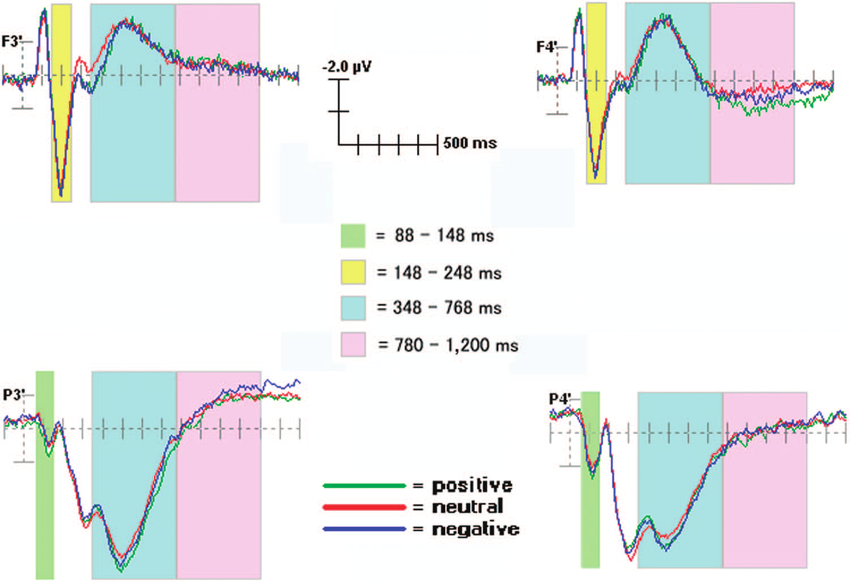

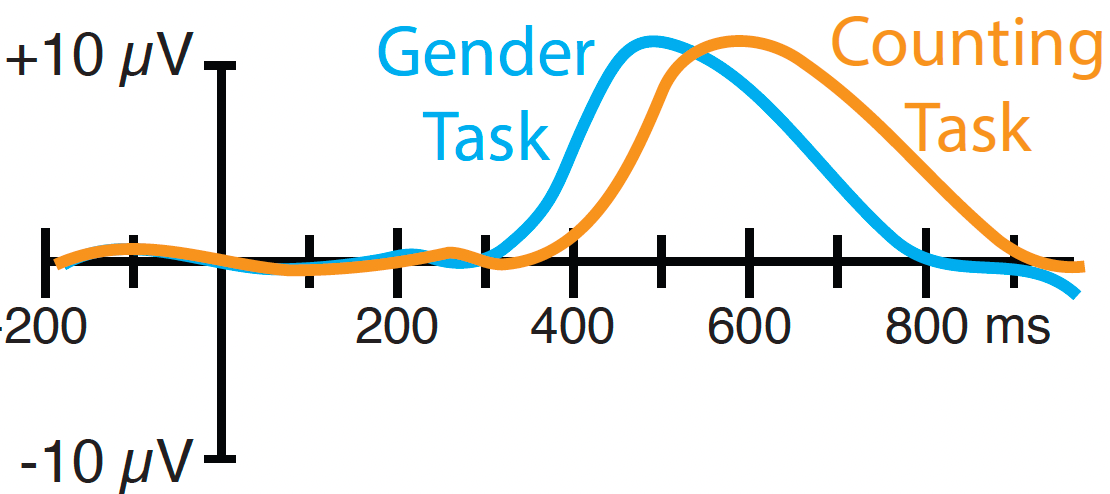

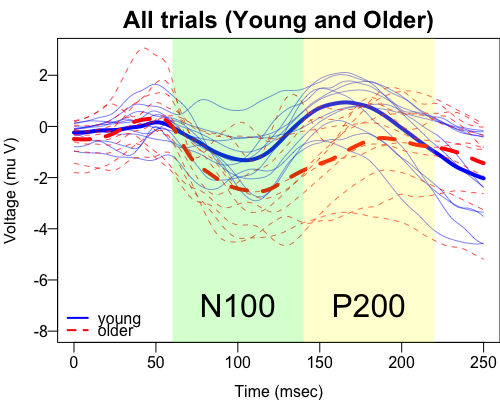

Current ERP Studies

• Multi-subject
  • Averaging across subjects to obtain the grand ERP waveform.
• Difference in latency and/or amplitude of ERP components for factors such as age, gender, etc.
  • Basic ANOVA is conducted.
• A time window or search window needs to be specified to frame the range of the components.
  • No systematic and consistent ways of selecting such windows.

Source: Rossion & Jacques (2012)

The model we just talked about is the basic skeleton for ERP analysis. But we need a more sophisticated one for addressing current ERP study issues.

Semiparametric Latent ANOVA Model (SLAM)

• Estimates the amplitude and latency as well as the ERP waveform in a unified framework.

• Supports a multi-factor ANOVA setting that is capable of examining how multiple factors or covariates affect ERP components’ latency and amplitude.

• Bayesian approach having probabilistic statements about the amplitude and latency of ERP components.

• The hierarchical nature of the model provides estimates at both the grand group and individual subject levels.

• Simultaneously estimates the amplitude and latency as well as the ERP waveform in a unified framework.

• Supports a multi-factor ANOVA setting that is capable of examining how multiple factors or covariates affect ERP components’ latency and amplitude.

• Bayesian approach having probabilistic statements about the amplitude and latency of ERP components.

• The hierarchical nature of the model provides estimates at the grand group level as well as the individual subject level that is masked by grand averaging.

SLAM One-way ANOVA - Likelihood with DGP

y_{igs} = f_{gs}(x_i) + \epsilon_{igs}, ~~ \epsilon_{igs} \stackrel{\rm iid}{\sim}N(0, \sigma^2).

• Time point i = 1, \dots, n

• Factor level g = 1, \dots, G

• Subject s = 1, \dots, S_{g}

f_{gs} \mid \bm{t}_{gs} \sim \text{DGP}(0, k(\cdot, \cdot; \boldsymbol \theta), \bm{t}_{gs}), where \bm{t}_{gs} = \{t_{gs}^m\}_{m = 1}^M.

• M is pre-specified.

SLAM One-way ANOVA - Prior

\begin{aligned} t_{gs}^m \mid r_{g}^m, \eta_{g}^m &\stackrel{\rm iid}{\sim}\text{gbeta}\left(r_{g}^m\eta_{g}^m, \, (1 - r_{g}^m)\eta_{g}^m, \, a^{m}, \, b^{m}\right), \, s = 1, \dots, S_{g}. \end{aligned}

• Subject-level t_{gs}^m \in [a^{m}, b^{m}]

• Group-level r_{g}^m \in (0, 1): location of prior mean in [a^{m}, b^{m}]

• {\mathbb E}\left(t_{gs}^m\right) = (1 - r_{g}^m)a^{m} + r_{g}^mb^{m}

• For the subject-level parameters, we assume it follows general beta distribution that has support a^m, b^m interval, which can be viewed as the most coarse search window for a latency.
• The shape parameters are parameterized using r and \eta, so that the group-level parameter r indicates the location of the prior mean in the search window, and tells us a or b is closer to the mean location.
• It represents the relative location of the interval, or the weight between the two end points of the search window.

SLAM One-way ANOVA - Link Function

With the link function \phi(\cdot) \in (-\infty, \infty), and z_j \in \{0, 1\}, j = 1, \dots, G-1,

\phi\left(r_{g}^m\right) = \beta_0^m + \beta_{1}^mz_{1} + \cdots + \beta_{G-1}^mz_{G-1}.

• Accommodate any linear model with categorical and numerical variables

• Being able to describe interactions

• Any link function with domain (0, 1) can be used, logit, probit, complementary log-log, etc.

• To do the inference about r, we introduce an ANOVA structure to model how the factor the location of ERP component.
• Since r is bounded between 0 and 1, we use a link function \phi() followed by an ANOVA which is written as a regression or linear model using dummy variables.

SLAM One-way ANOVA - Other Priors

\begin{aligned} \beta_{j}^m &\sim N(\mu_j^m, (\sigma_j^m)^2), ~~ j = 0, 1, \dots, G-1\\ \eta_{g}^m &\sim Ga(\alpha_{\eta}, \beta_{\eta}),\\ \pi(\sigma^2, \tau^2, h) &= \pi(\sigma^2) \pi(\tau^2) \pi(h) = IG(\alpha_{\sigma}, \beta_{\sigma})IG(\alpha_{\tau}, \beta_{\tau})Ga(\alpha_{h}, \beta_{h}). \end{aligned}

SLAM One-way ANOVA - Inference

For iteration i = 1, 2, \dots until convergence:

• Monte Carlo E-step:

  • Metropolis-Hastings on \mathbf{t}, \beta_{j}^m, \eta_g^m, and Gibbs sampling on \sigma^2.

• M-step: Given samples of \mathbf{t} and \sigma^2, update \boldsymbol \theta to \hat{\boldsymbol \theta}^{(i+1)} by setting \begin{aligned} \hat{\boldsymbol \theta}^{(i+1)} &= \arg \max_{\boldsymbol \theta} \frac{1}{L} \sum_{l=1}^L \log p(\bm{y} \mid \mathbf{t}_l^{(i)}, (\sigma_l^2)^{(i)}, \boldsymbol \theta^{(i)}) \end{aligned}

where

\bm{y}_{gs} \mid \mathbf{t}_{gs}, \hat{\boldsymbol \theta}^{(i)} \stackrel{\rm ind}{\sim}N\left(\boldsymbol \mu_{gs}, \boldsymbol \Sigma_{gs} +\sigma^2\mathbf{I}\right).

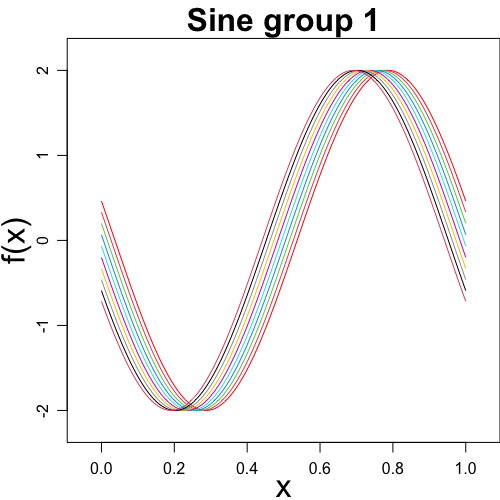

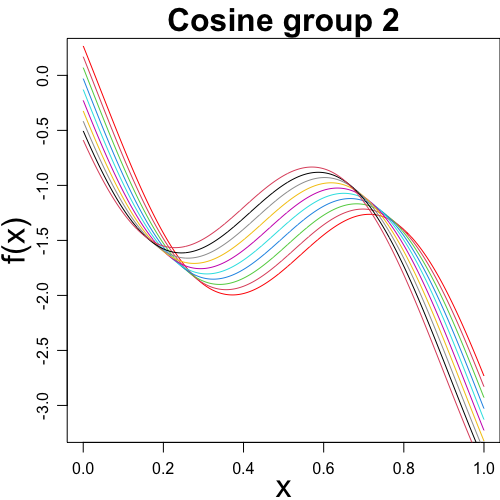

Simulation - Data

• For subject s = 1, 2, \dots, 10, group g = 1, 2,

\begin{aligned} f(x)_{1s} = -2\sin(2 \pi x + s/15 - 0.3),\\ f(x)_{2s} = \cos(2\pi x + s/10 + 1.2) - 3x \end{aligned}

• Data of size n=100 are generated with \sigma = 0.25

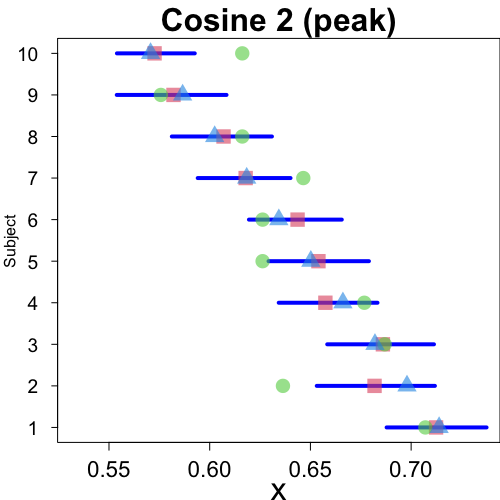

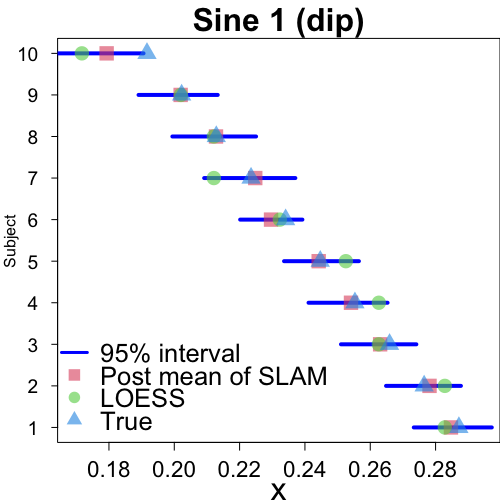

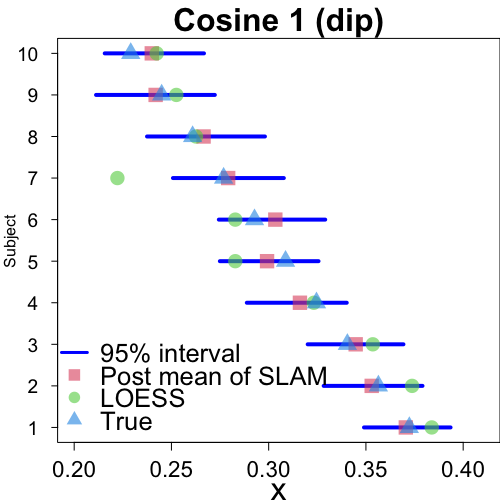

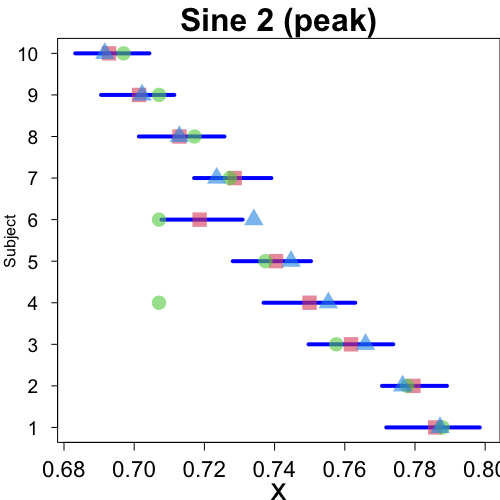

Point and Interval Estimation of Subject-level Latency

Point and Interval Estimation of Subject-level Latency

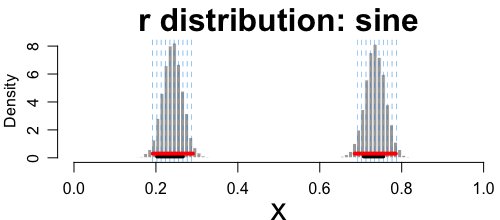

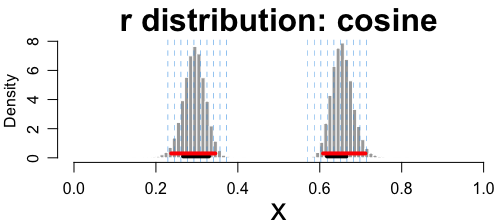

Uncertainty Quantification of Group-level Latency

Latency root mean square error

Method	Sine	Cosine
SLAM-posterior mean	0.0037 (0.0000)	0.0068 (0.0002)
SLAM-median	0.0036 (0.0001)	0.0068 (0.0002)
LOESS1	0.0119 (0.0021)	0.0251 (0.0036)

1. Jeste SS, Kirkham N, Senturk D, Hasenstab K, Sugar C, Kupelian C, Baker E, Sanders A, Shimizu C, Norona A, et al. 2014. Electrophysiological evidence of heterogeneity in visual statistical learning in young children with ASD. Developmental Science. 18(1):90–105

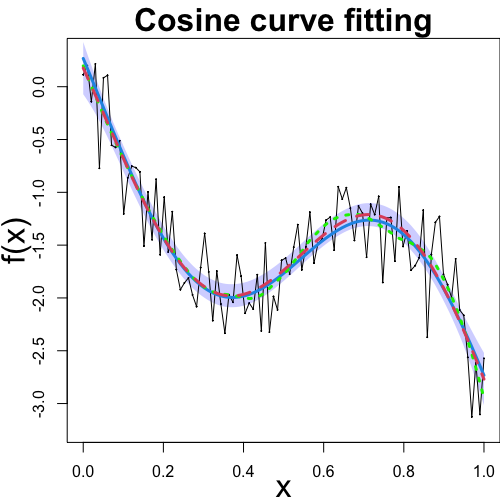

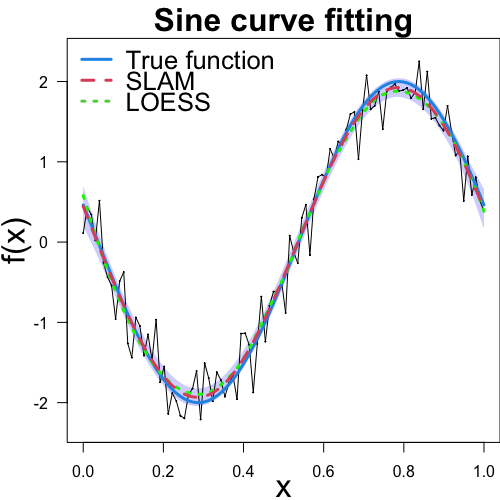

Curve Fitting

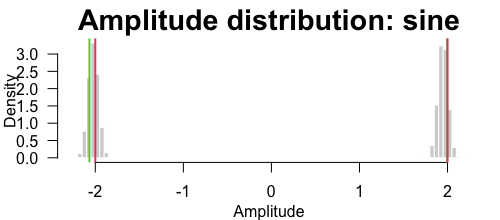

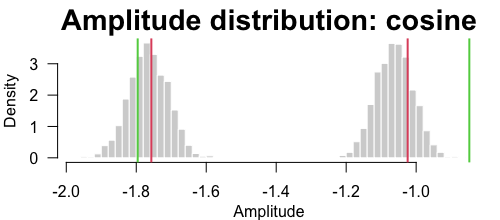

Amplitude Estimates

Amplitude root mean square error

Method	Sine	Cosine
SLAM-posterior mean	0.0421 (0.0004)	0.0582 (0.0016)
SLAM-median	0.0421 (0.0005)	0.0581 (0.0016)
LOESS1	0.0661 (0.0021)	0.0654 (0.0066)

• The amplitude estimation relies on a search window that is specified by the posterior of t or r.

1. Jeste SS, Kirkham N, Senturk D, Hasenstab K, Sugar C, Kupelian C, Baker E, Sanders A, Shimizu C, Norona A, et al. 2014. Electrophysiological evidence of heterogeneity in visual statistical learning in young children with ASD. Developmental Science. 18(1):90–105

Simulation from the Model

		Mean (SD) of posterior mean		Mean (SD) of RMSE
Parameter	True value	10 subjects	20 subjects	10 subjects	20 subjects
r_1^1	0.57	0.54 (0.033)	0.56 (0.027)	0.077 (0.016)	0.050 (0.012)
r_1^2	0.43	0.46 (0.028)	0.44 (0.024)	0.077 (0.012)	0.051 (0.011)
r_2^1	0.45	0.45 (0.035)	0.45 (0.029)	0.075 (0.010)	0.051 (0.009)
r_2^2	0.67	0.63 (0.033)	0.65 (0.025)	0.084 (0.017)	0.052 (0.010)
\beta_0^1	0.3	0.17 (0.135)	0.24 (0.109)	0.314 (0.064)	0.205 (0.049)
\beta_0^2	-0.3	-0.17 (0.114)	-0.24 (0.100)	0.317 (0.049)	0.210 (0.043)
\beta_1^1	-0.5	-0.38 (0.276)	-0.44 (0.222)	0.463 (0.115)	0.319 (0.100)
\beta_1^2	1	0.72 (0.244)	0.88 (0.203)	0.538 (0.127)	0.351 (0.093)
\sigma	0.5	0.57 (0.003)	0.57 (0.003)	0.074 (0.002)	0.074 (0.002)

ERP Data

• Experiment on speech recognition.

• The N100 (60 ~ 140 msec) component captures phonological (syllable) representation.

• P200 (140 ~ 220 msec) component represents higher-order perceptual processing.

• The experiment involved 18 college-age students and 11 older controls, as aging is known to cause difficulties in perceiving speech, especially in noisy environments.
• The older subjects have ages ranging from 47 to 91 years old with a mean age of 67.78 years.
• The experiment resulted in a total of 2304 trials.
• The six electrodes Fp1, F3, F7, C3, FC5, and T7

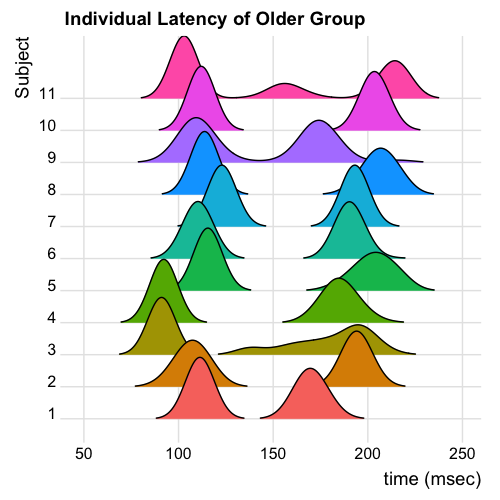

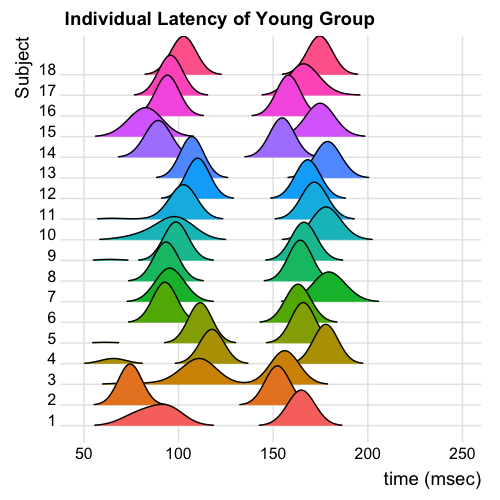

Latency Difference Between Subjects

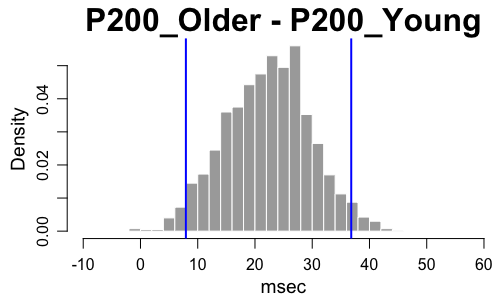

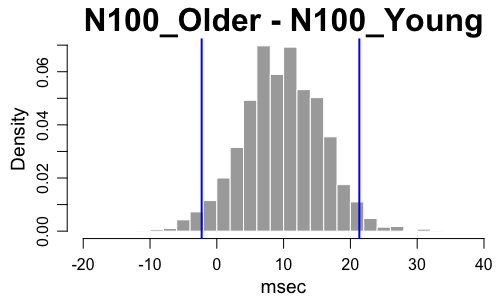

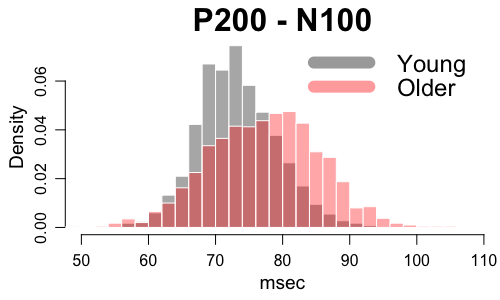

Latency Difference Between Groups

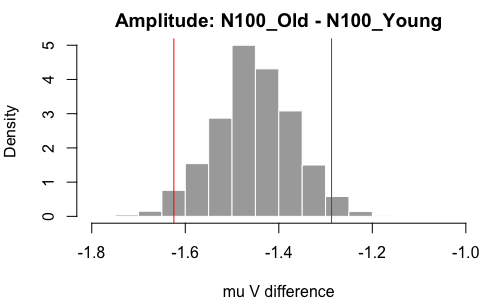

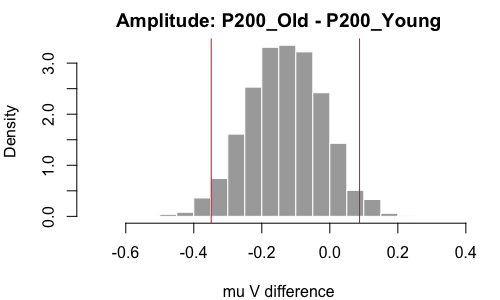

Amplitude Difference Between Groups

Conclusion

• Novel Bayesian SLAM estimates the latency and amplitude of ERP components with uncertainty quantification.

• Solves the search window specification problem by generating posterior distribution of latency.

• Incorporates the ANOVA and possibly a latent generalized linear model structure in a single unified framework.

• Examines both individual and group differences that facilitate comparing different characteristics or factors, such as age/gender.

• R package slam at https://github.com/chenghanyustats/slam

• Working in progress:

  • autoregressive correlated noises or trial variability.
  • 2D spatial modeling and mapping on electrodes.
